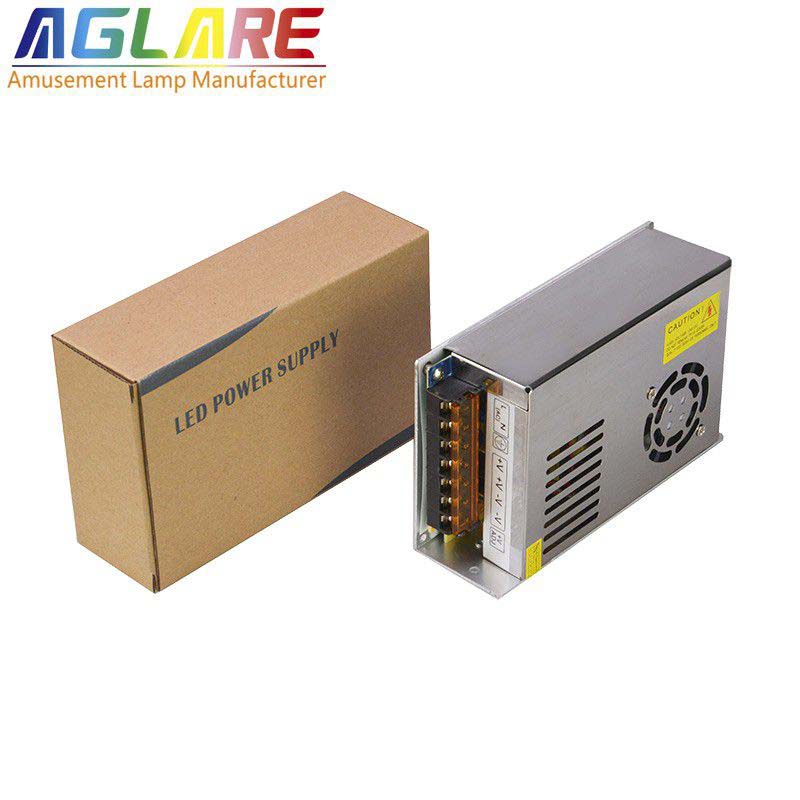

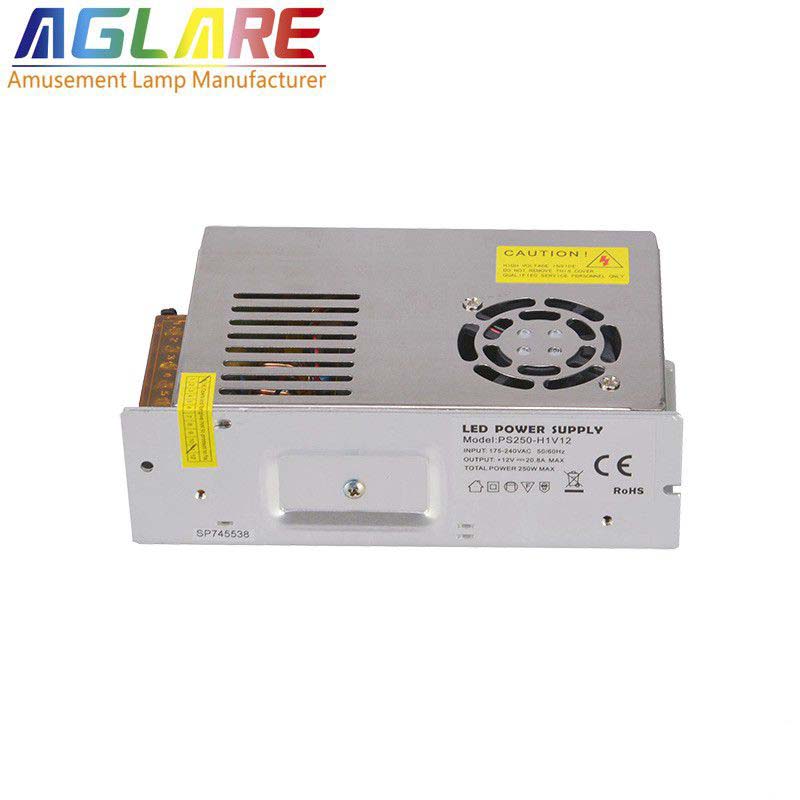

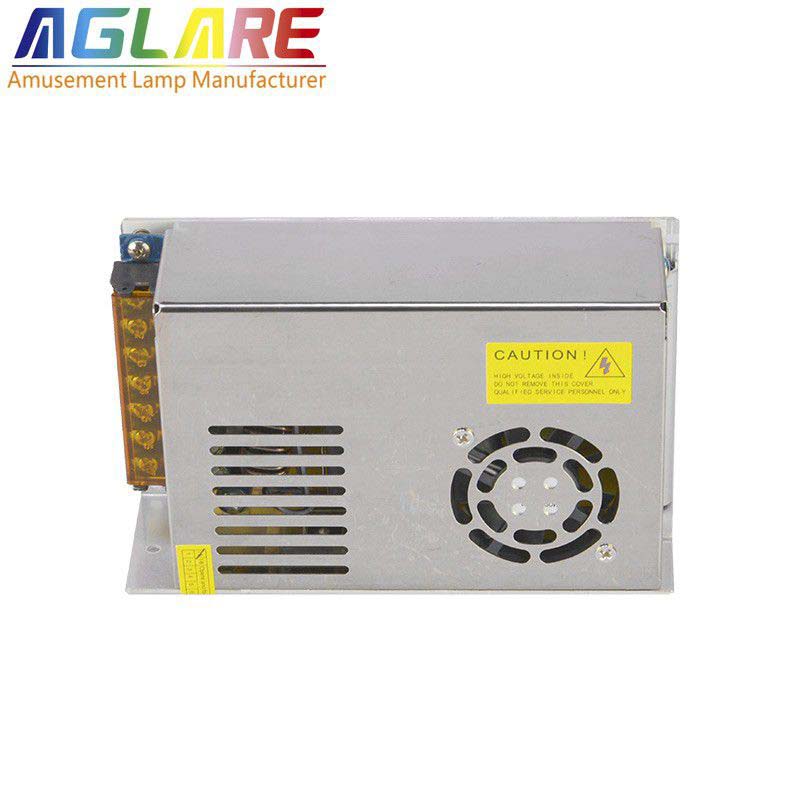

DC12V 24V LED Switching Power Supply 250W for LED Strip Lights

Item Type: YJ250-H1V12

  • Item Type: YJ250-H1V12
  • Power: 250W
  • Output voltage: DC 12/24V
  • Input Voltage: AC 175-240V
  • Output Current: 20.83/10.42A
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

12V LED Strip Light Drivers & Power Supplies


Product description:

1. AC input range selectable by switch.

2. Protections: Short circuit / Overload / Over voltage / Over temperature.

3. Forced air cooling by built-in DC fan.

4. Withstand 300vac surge input for 5 second.

5. Built-in cooling Fan ON-OFF control.

6. Built-in constant current limiting circuit.

7. LED indicator for power on.

8. Fixed switching frequency at 90KHz.

9. Low cost, high reliability.

10. 2 years warranty.

Applications:

This DC12V 24V LED Switch Power Supplyy, Widely used in LED bulbs, strip lighting, CCTV camera, 3D printers,Industrial automation, LED display, etc. With anti-jamming to ensures the long life LED lamps and reduce the LED luminous decay.

Product Parameters

power supply for led lights

 Model No： YJ250-H1V12
Power： 250W
Material： Aluminum
Input Voltage： AC 175-240V
Output voltage:  DC12V/DC24V
Size： ‎160*98.3*49.3mm
Output current： 20.83/10.42A
Lighting solutions service： Lighting and circuitry design
Adjustable Power Supply Type: Switch-Mode Power Supply
Protection： Short Circuit Protection
Working Temp:  -27-75
Power Factor： PF>0.95
IP Degree： IP22


led power supply
Wiring:
● L, N, GND: AC power input
● +V: DC power output "+"
● -V: DC power output "-"
● +V / ADJ: fine adjustment of output voltage
Working Temperature: 0~40℃
Humidity: 0~95% Non-Condensation
