Home > Product > LED Accessories > LED Strip Power Supply > 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • LED Strip Power Supply - 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • LED Strip Power Supply - 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • LED Strip Power Supply - 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting
  • LED Strip Power Supply - 350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting

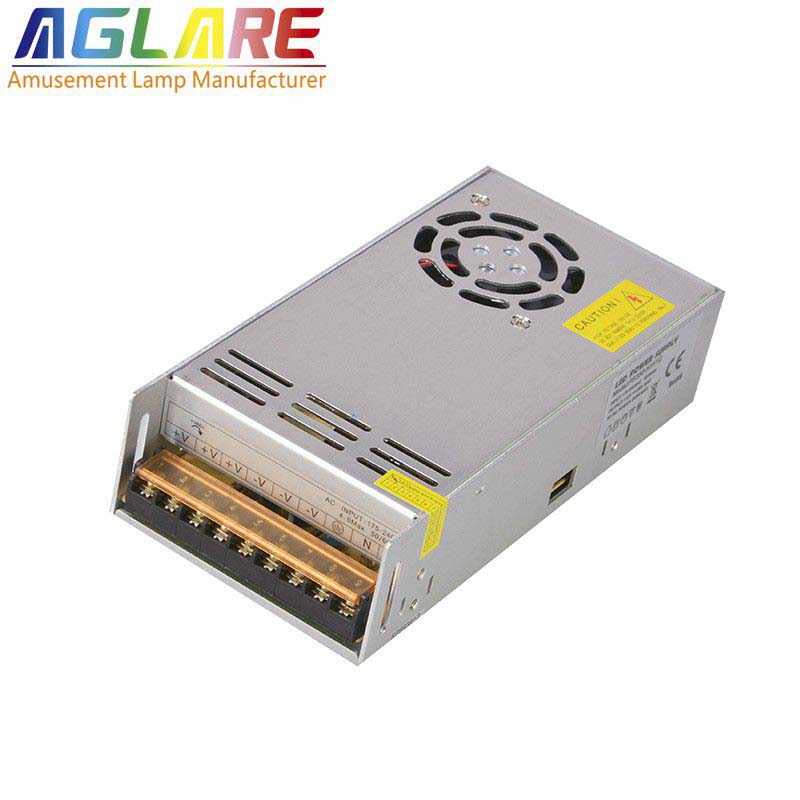

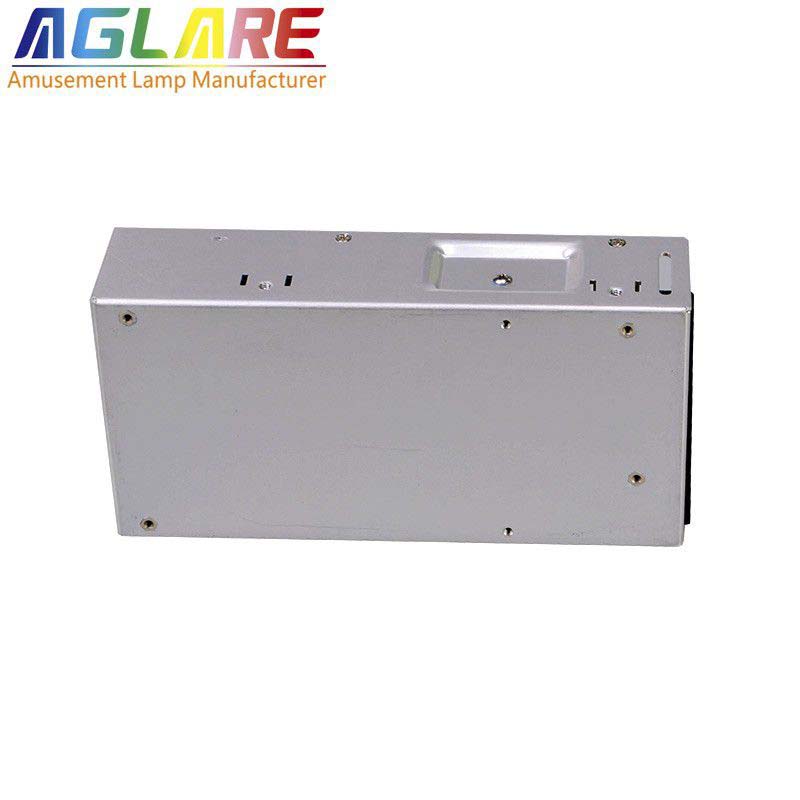

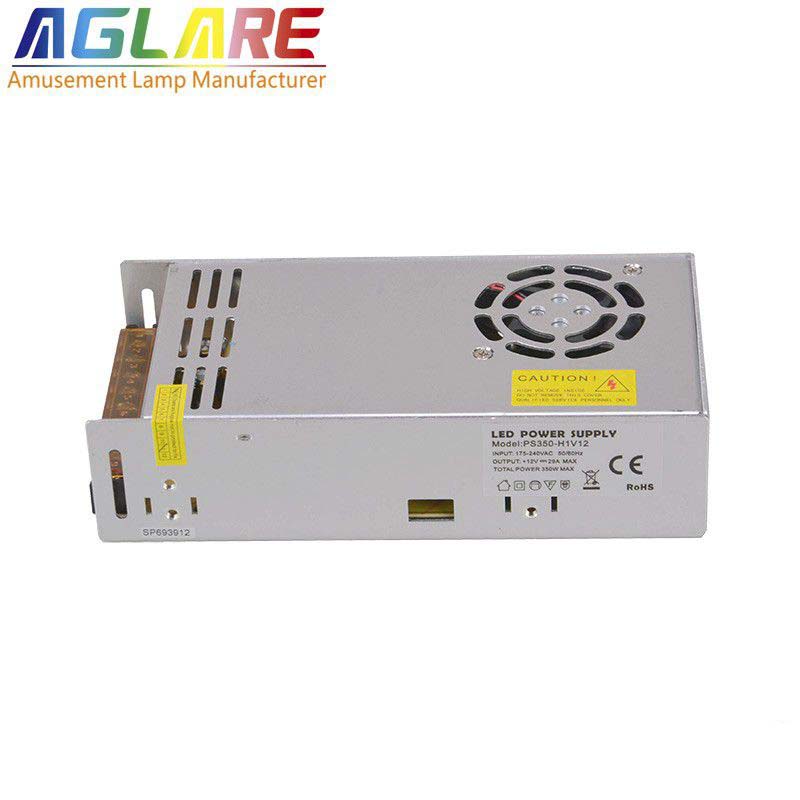

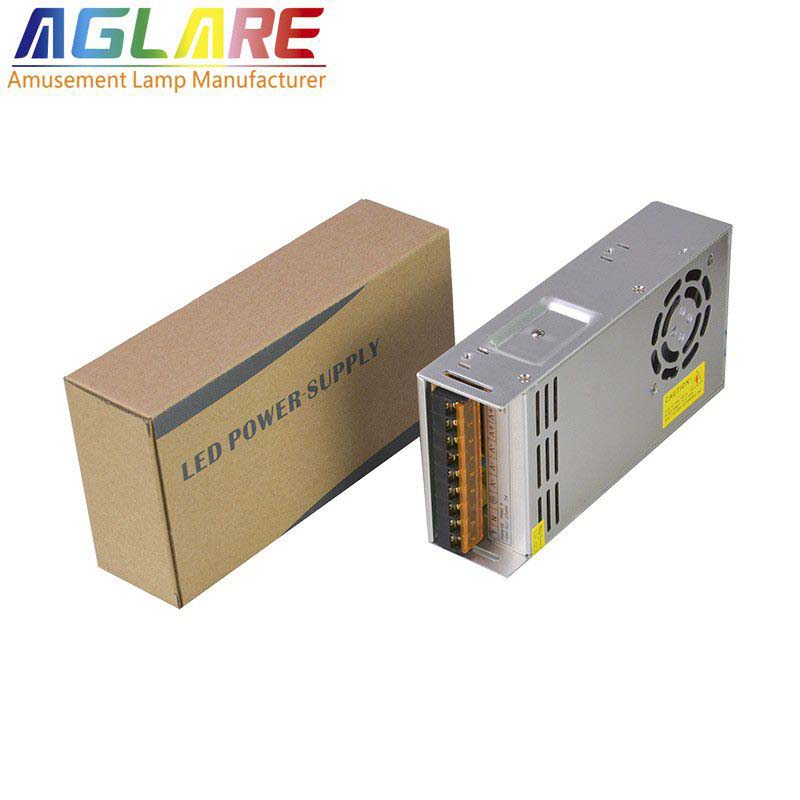

350W DC12V 24V 29.17A Switch Driver Power Supply for LED bulbs LED Strips lighting

Item Type: YJ350-H1V12

  • Item Type: YJ350-H1V12
  • Power: 350W
  • Output voltage: DC 12/24V
  • Input Voltage: AC 175-240V
  • Output Current: 29.17/14.58A
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

350W DC 12/24V 29.17A led switching power supply for LED bulbs LED Strips lighting,CCTV,Radio,Computer Project,3D Printer

Technical Specifications:
Manual Switch between 110V and 220V Input.
+ / - 10% adjustable output voltage.
Input voltage: AC 175-240V.
DC Output: DC 12V 24V , 0 ~ 29.17A.
Auto on/off cooling fan.
High Efficiency, Low Temperature.
High reliability.
LED indicator for power on
Built-in EMI Filter.
Over Load and Short Circuit Protection.
Over Voltage Protection.
Auto-recovery after protection.
Product Parameters

12v power supply for led lights

 Model No： YJ350-H1V12
Power： 350W
Material： Aluminum
Input Voltage： AC 175-240V
Output voltage:  DC12V/DC24V
Size： ‎199*98.5*50mm
Output current： 29.17/14.58A
Lighting solutions service： Lighting and circuitry design
Adjustable Power Supply Type: Switch-Mode Power Supply
Protection： Short Circuit Protection
Working Temp:  -27-75
Power Factor： PF>0.95
IP Degree： IP22


led switching power supply
