Product DEtails

Home > Product > LED Accessories > LED Strip Power Supply > LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip Power Supply - LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip Power Supply - LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip Power Supply - LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W
  • LED Strip Power Supply - LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W

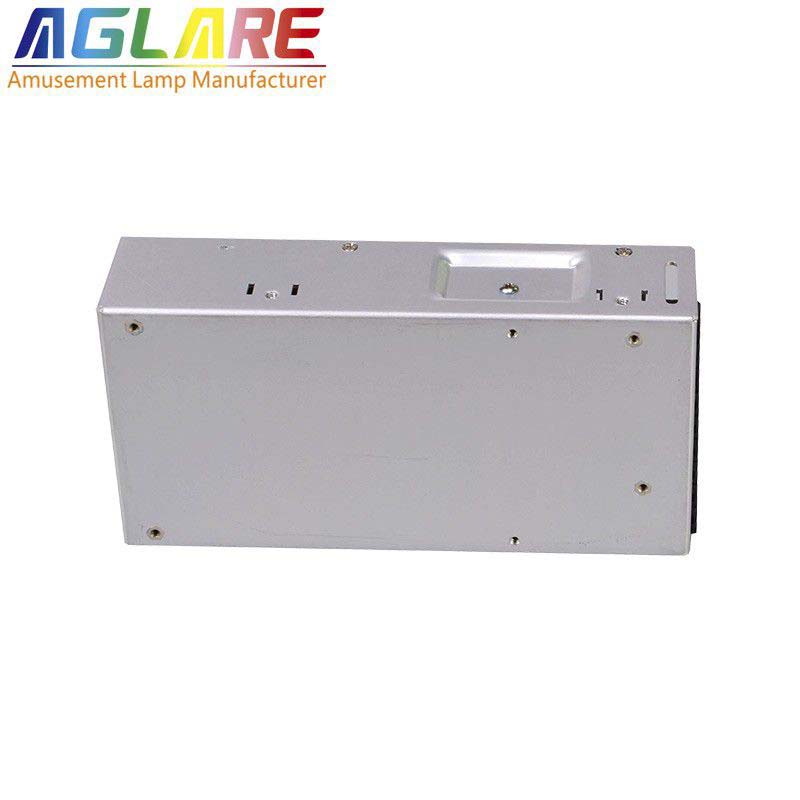

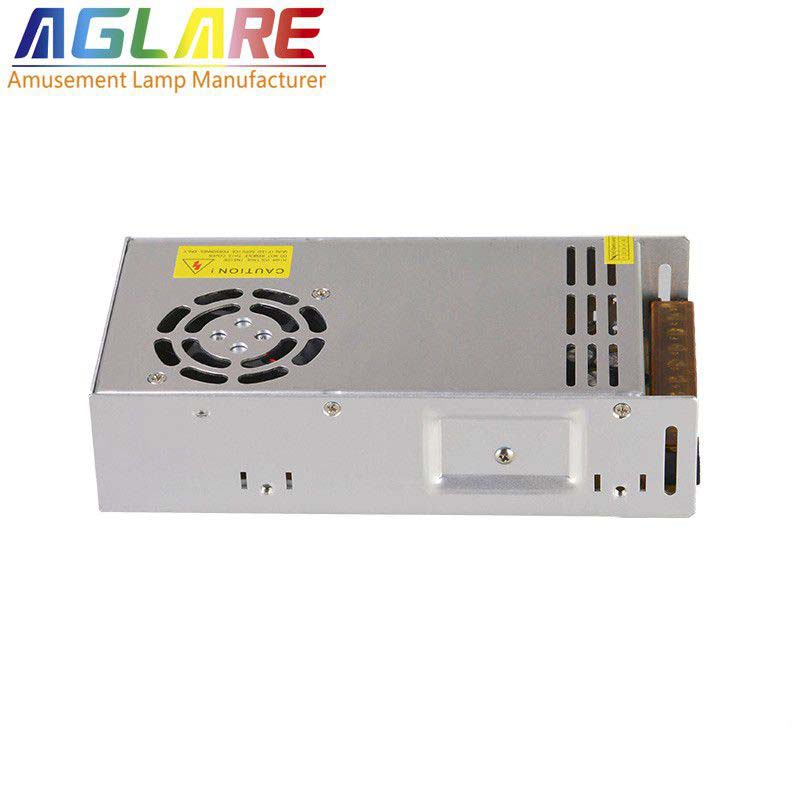

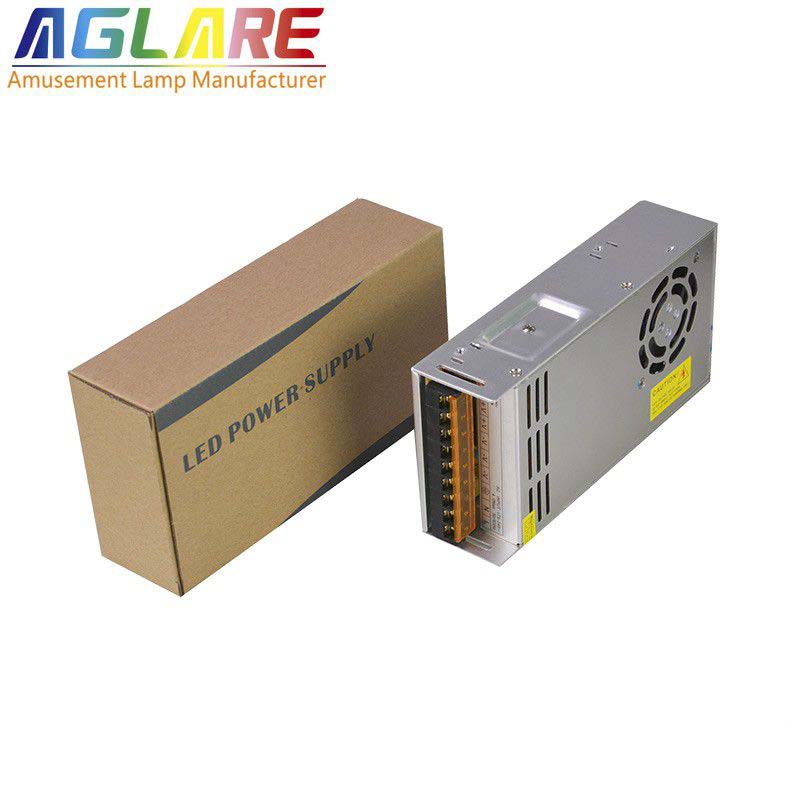

LED Strip DC 12/24V 50A LED Switching Power Supply Driver 600W

Item Type: YJ600-H1V12

  • Item Type: YJ600-H1V12
  • Power: 600W
  • Output voltage: DC 12/24V
  • Input Voltage: AC 175-240V
  • Output Current: 50/25A
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

DC12V 24V 50A Switching Power Supply,600W Universal Regulated power supply Adapter Transformer for LED Strip light,LED light,CCTV,Radio,Computer Project,3D Printer

Product description:
1. AC input range selectable by switch.
2. Protections: Short circuit / Overload / Over voltage / Over temperature.
3. Forced air cooling by built-in DC fan.
4. Withstand 300vac surge input for 5 second.
5. Built-in cooling Fan ON-OFF control.
6. Built-in constant current limiting circuit.
7. LED indicator for power on.
8. Fixed switching frequency at 90KHz.
9. Low cost, high reliability.

Applications:

This DC12V 24V LED Switch Power Supplyy, Widely used in LED bulbs, strip lighting, CCTV camera, 3D printers,Industrial automation, LED display, etc. With anti-jamming to ensures the long life LED lamps and reduce the LED luminous decay.

Product Parameters

12v power supply for led lights

 Model No： YJ600-H1V12
Power： 600W
Material： Aluminum
Input Voltage： AC 175-240V
Output voltage:  DC12V/DC24V
Size： ‎199*98.5*50mm
Output current： 50/25A
Lighting solutions service： Lighting and circuitry design
Adjustable Power Supply Type: Switch-Mode Power Supply
Protection： Short Circuit Protection
Working Temp:  -27-75
Power Factor： PF>0.95
IP Degree： IP22


led power supply 24v
DC12V 24V Universal Regulated Switching Power Supply LED Transformer Connection:

The LED Transformer/Driver is used to power low voltage (12V/24V) LED bulbs strip lighting or any other DC 12V 24V devices.

Wiring:

● L, N, GND: AC power input
● +V: DC power output "+"
● -V: DC power output "-"
● +V / ADJ: fine adjustment of output voltage
Working Temperature: 0~40℃
Humidity: 0~95% Non-Condensation
